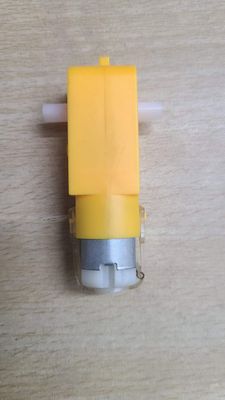

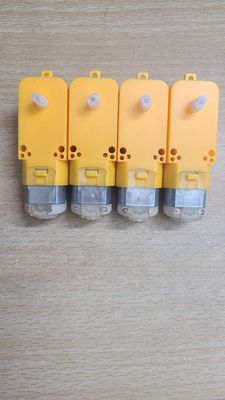

YELLOW Plastic Gear Motor DC 3V 6V 130RPM

Product details of YELLOW Plastic Gear Motor DC 3V 6V 130RPM Gear Motor Dual Shaft Smart Robot Car TT Gear Motor Double Shaft Dual Axis Geared TT Motor For Smart Robot Car Toys Electrical Circuitry & Parts - dc motorRated Voltage: 5.0V DCWorking Voltage: 3.0V - 6.0V DCCurrent: (-150mA , -200mASpeed: (-90rpm±10% , -200rpm±10%Torque: max. 0.8kg/cmReduction ratios: 1:48Brush-type: BrushBody Size: 70mm x 37mm x 23mmShaft Size: 8mm x 2mm diameterWeight: 17.5 gramsDescription: 6V DC Geared Motor 130RPM Dual ShaftYELLOW Plastic Gear Motor DC 3V 6V 130RPM Gear Motor Dual Shaft Smart Robot Car TT Gear Motor Double Shaft Dual Axis Geared TT Motor For Smart Robot Car Toys130 RPM Dual Shaft BO Motor Plastic Gear Motor – BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 66 mm Diameter wheel for Plastic Gear Motors and 87 mm Diameter Multipurpose wheel for Plastic Gear Motors.Low-cost geared DC Motor. It is an alternative to our metal gear DC motor. It comes with operating voltage of 3 -6V and is perfect for building small and medium robots. Available with 60 and 150 RPM.The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.Specifications:Name: TT motorColor: AnyRated Voltage: 5.0V DCWorking Voltage: 3.0V - 6.0V DCCurrent: (3V-150mA , 6V-200mASpeed: (3V-90rpm±10% , 6V-200rpm±10%Torque: max. 0.8kg/cmReduction ratios: 1:48Brush-type: BrushBody Size: 70mm x 37mm x 23mmShaft Size: 8mm x 2mm diameterWeight: 17.5 gramsFeatures :Cost-effectiveness of the injection-molding process.Elimination of machining operations.Low density: lightweight, low inertia.Uniformity of parts.Capability to absorb shock and vibration as a result of elastic compliance.Ability to operate with minimum or no lubrication, due to inherent lubricity.The relatively low coefficient of friction.Corrosion-resistance; elimination of plating, or protective coatings.The quietness of operation.Tolerances often less critical than for metal gears, due in part to their greater resilience.Consistency with the trend to greater use of plastic housings and other components.Applications:DIY ProjectsBattery-operated toysDisk drives Steel rolling mills PaperMachines Medical equipmentRadio-controlled aircraftAutomobiles Drive systems PositioningIndustrial and consumer actuators Winches Robotics MixersRobotic projectPackage Include:1x 6V DC Geared Motor 130RPM Dual Shaft

categories

Category List

All products

•
•

Details:

• Warranty
  no

Product details of YELLOW Plastic Gear Motor DC 3V 6V 130RPM Gear Motor Dual Shaft Smart Robot Car TT Gear Motor Double Shaft Dual Axis Geared TT Motor For Smart Robot Car Toys Electrical Circuitry & Parts - dc motor

Rated Voltage: 5.0V DC

• Working Voltage: 3.0V - 6.0V DC

• Current: (-150mA , -200mA

• Speed: (-90rpm±10% , -200rpm±10%

• Torque: max. 0.8kg/cm

• Reduction ratios: 1:48

• Brush-type: Brush

• Body Size: 70mm x 37mm x 23mm

• Shaft Size: 8mm x 2mm diameter

• Weight: 17.5 grams

Description: 6V DC Geared Motor 130RPM Dual ShaftYELLOW Plastic Gear Motor DC 3V 6V 130RPM Gear Motor Dual Shaft Smart Robot Car TT Gear Motor Double Shaft Dual Axis Geared TT Motor For Smart Robot Car Toys130 RPM Dual Shaft BO Motor Plastic Gear Motor – BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 66 mm Diameter wheel for Plastic Gear Motors and 87 mm Diameter Multipurpose wheel for Plastic Gear Motors.Low-cost geared DC Motor. It is an alternative to our metal gear DC motor. It comes with operating voltage of 3 -6V and is perfect for building small and medium robots. Available with 60 and 150 RPM.The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.Specifications:

• Name: TT motor

• Color: Any

• Rated Voltage: 5.0V DC

• Working Voltage: 3.0V - 6.0V DC

• Current: (3V-150mA , 6V-200mA

• Speed: (3V-90rpm±10% , 6V-200rpm±10%

• Torque: max. 0.8kg/cm

• Reduction ratios: 1:48

• Brush-type: Brush

• Body Size: 70mm x 37mm x 23mm

• Shaft Size: 8mm x 2mm diameter

• Weight: 17.5 grams

Features :

• Cost-effectiveness of the injection-molding process.

• Elimination of machining operations.

• Low density: lightweight, low inertia.

• Uniformity of parts.

• Capability to absorb shock and vibration as a result of elastic compliance.

• Ability to operate with minimum or no lubrication, due to inherent lubricity.

• The relatively low coefficient of friction.

• Corrosion-resistance; elimination of plating, or protective coatings.

• The quietness of operation.

• Tolerances often less critical than for metal gears, due in part to their greater resilience.

• Consistency with the trend to greater use of plastic housings and other components.

Applications:

• DIY Projects

• Battery-operated toys

• Disk drives Steel rolling mills Paper

• Machines Medical equipment

• Radio-controlled aircraft

• Automobiles Drive systems Positioning

• Industrial and consumer actuators Winches Robotics Mixers

• Robotic project

Package Include:

• 1x 6V DC Geared Motor 130RPM Dual Shaft

YELLOW Plastic Gear Motor DC 3V 6V 130RPM
