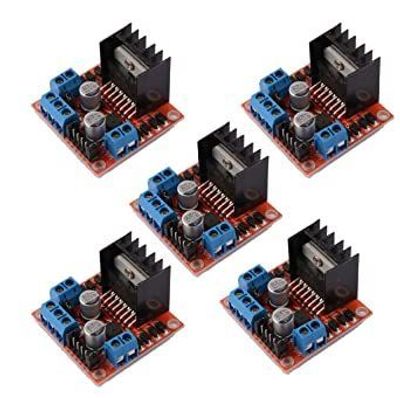

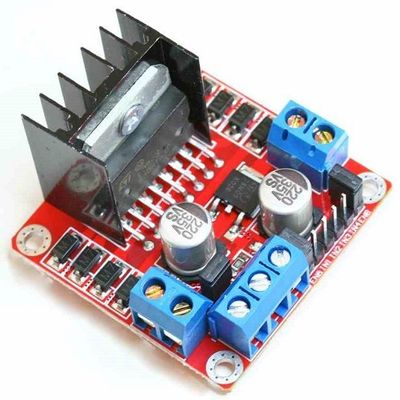

L298N Motor Driver Module for Arduino

Product details of L298N Motor Driver Module for ArduinoThis module is based on L298N, high voltage, high current dual full bridge driver which can be used to drive a DC motor and stepper motor, relay coil inductive load; using standard logic level signal control; having two enable control end allow or prohibit the work has a logic device power supply input terminal, in the case regardless of the input signal affect the internal logic circuit portion to operate at a low voltage; can be an external sense resistor, the amount of change in feedback to the control circuit.This module integrates a built-in 5V power supply. When you drive voltage of 7V-35V can onboard 5V logic supply, do not input voltage when using onboard 5V power supply, the +5 V power supply interface, but leads to 5V voltage for external use.Specification:Chip: L298NLogic voltage: 5VLogic current 0mA-36mAStorage Temperature: -20 ℃ to ℃ to +135Operating mode: H-bridge driver (dual)Drive voltage: 5V-35VDrive current: 2A (MAX single bridge)Maximum power: 25WDimensions:43x43x27mmFeatures:Driver chip: L298 dual H-bridge driver chip.Terminal driver part of the supply area VMS: +5 V ~ +35 V.Drive part of the peak current Io:2A / Bridge.The logical part of the terminal power supply range is Vss:4.5-5.5 V.The logical part of the operating current range: is 0 ~ 36mA.The control signal input voltage range is 4.5-5.5V low and 0V high.Maximum power consumption.Storage temperature:-25 ~ +130.

categories

Category List

All products

•
•
•
•

Details:

• Warranty
  no

Product details of L298N Motor Driver Module for Arduino

This module is based on L298N, high voltage, high current dual full bridge driver which can be used to drive a DC motor and stepper motor, relay coil inductive load; using standard logic level signal control; having two enable control end allow or prohibit the work has a logic device power supply input terminal, in the case regardless of the input signal affect the internal logic circuit portion to operate at a low voltage; can be an external sense resistor, the amount of change in feedback to the control circuit.This module integrates a built-in 5V power supply. When you drive voltage of 7V-35V can onboard 5V logic supply, do not input voltage when using onboard 5V power supply, the +5 V power supply interface, but leads to 5V voltage for external use.

Specification:

Chip: L298N

Logic voltage: 5V

• Logic current 0mA-36mA
• Storage Temperature: -20 ℃ to ℃ to +135
• Operating mode: H-bridge driver (dual)
• Drive voltage: 5V-35V
• Drive current: 2A (MAX single bridge)
• Maximum power: 25W
• Dimensions:43x43x27mm

Features:

• Driver chip: L298 dual H-bridge driver chip.
• Terminal driver part of the supply area VMS: +5 V ~ +35 V.
• Drive part of the peak current Io:2A / Bridge.
• The logical part of the terminal power supply range is Vss:4.5-5.5 V.
• The logical part of the operating current range: is 0 ~ 36mA.
• The control signal input voltage range is 4.5-5.5V low and 0V high.
• Maximum power consumption.
• Storage temperature:-25 ~ +130.
